柱式傳感器KW501
量程:10t,20t,30t,40t,50t,60t
全國服務(wù)熱線:18112387630
量程:10t,20t,30t,40t,50t,60t
靈敏度輸出 |
2.0±0.1%mV/V |
使用電壓 |
10V(15V Maximnm) |
零點輸出 |
±0.04mV/V |
絕緣阻抗 |
>2[50V DC]GΩ |
非線性 |
<±0.03% |
工作溫度 |
-10℃to40℃/14°Fto104°F |
重復(fù)性 |
<±0.03% |
安全過載 |
150% of full scale |
滯后 | <±0.03% | 極限過載 | 300% of full scale |
30分鐘蠕變 |
<±0.05% |
防護(hù)等級 |
IP67/IP68 |
輸入電阻 | 775Ω±5 | 顏色碼 |

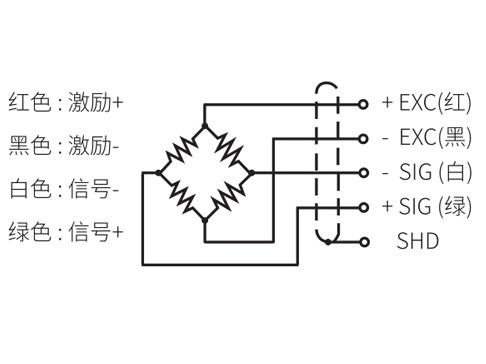

EXC(輸入)+:Red(紅);EXC(輸入)-:Black(黑); Sig(輸入)+:Green(綠);Sig(輸入)-:White(白); Shield Bare(屏蔽) |
輸出電阻 |
702Ω±2 |
||
材質(zhì) |
鋁合金/不銹鋼 |
